Commercial Design

Designing the Fusion of the Sun and the Moon for GENDEYE, an upscale sunglasses business with the latest technology in eye care along with a refine collection of frames. Spanning from desirable high-end brands to uniquely crafted gender fluid styles that represent versatility and inclusivity. The design symbolizes the bonding of the Sun and the Moon, where the Sun represents the supreme cosmic power, the ego and the masculine force and the Moon represents the birth, the resurrection, the emotion and the feminine force. Together both represent a harmonious balance like a Lunar eclipse.

Merging neutral colors on walls and shelves such as earth tones representing the Sun and cold colors representing the Moon will create an androgynous but chic ambiance to make the customers feel comfortable and unique.

Wood laser-cut panels with organic shapes on windows will give us an organic feel. Metal displays, wood curve ceiling lines will give the illusion of a Spatial unique atmosphere.

The goal of GENDEYE sunglasses is to make the customer feel more confident and accepted and thanks to the corporation of all these elements and materials, it will bring the feeling of inclusivity and wellness, where sunglasses should be fun and sophisticated.

We worked together with client to evolve the initial design from a pop-up shop into a brick-and-mortar retail store.

Type: Commercial

Location: 645 Heights Boulevard, Suite C. Houston TX 77007

Area of Site: 1,296 Sq. Ft.

Year: 2023

Software: Autodesk AutoCAD - Trimble Sketchup - Chaos Twin-motion

GENDEYE POP-UP SHOP

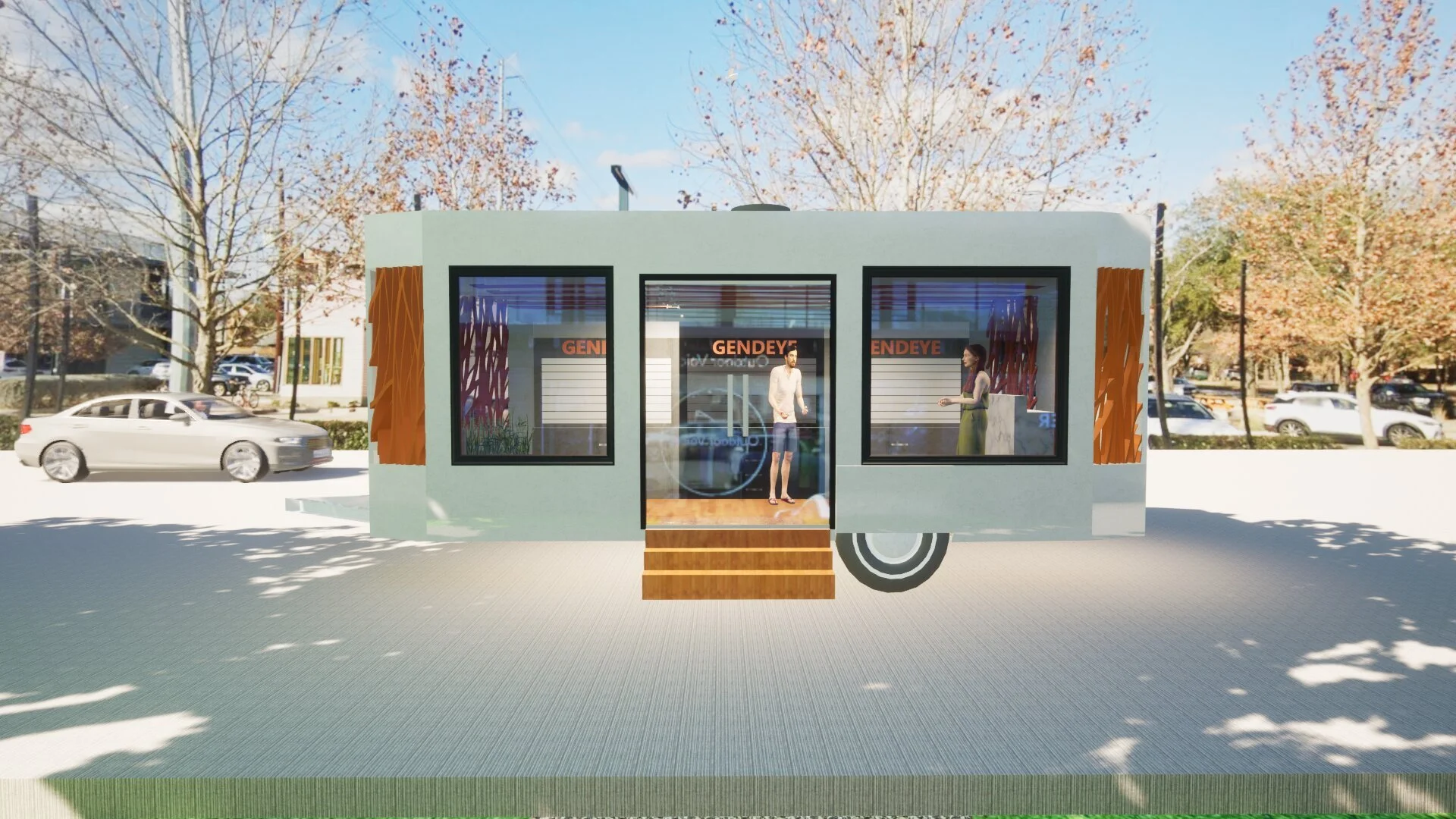

Pop-Up Shop Outside View (Twin-Motion)

Great experience working with Twin-Motion. this is the beginning of GENDEYE business, started as a pop-up shop and evolved into brick & mortar retail store.

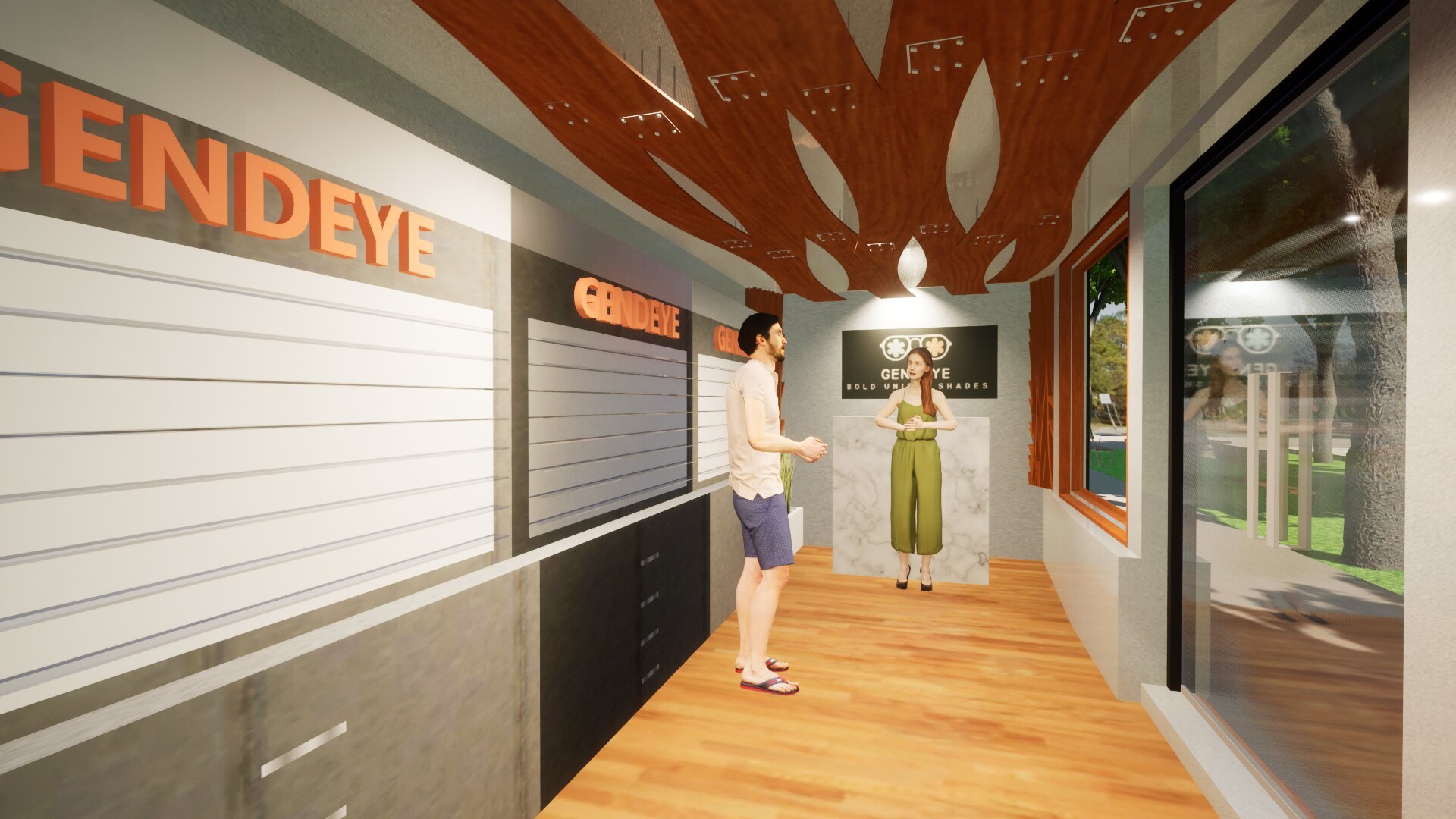

Pop-Up Shop Inside View (Twin-Motion)

View from the inside shop mixing textures and colors for an organic unique style.

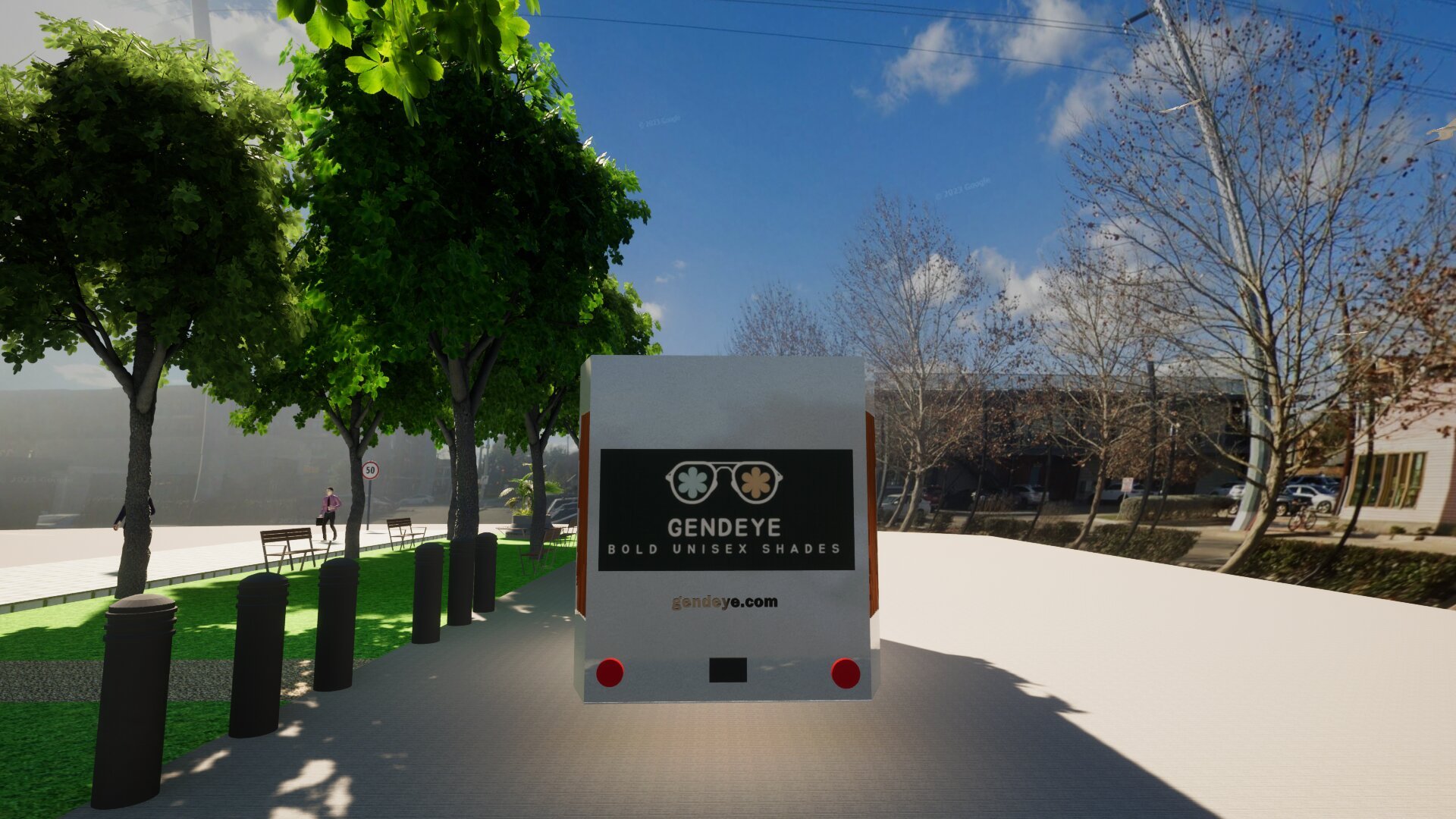

Pop-Up Shop Back View (Twin-Motion)

Advertising information including Logo of the company for the Pop-Up Shop

Pop-Up Shop Outside View (Sketchup)

Perseptive view with measurements and information about the pop-up shop in SketchUp.
Pop-Up Shop Floor Plan

AutoCAD floor plan of the Pop-up shop to understand the space planning.

GENDEYE RETAIL STORE

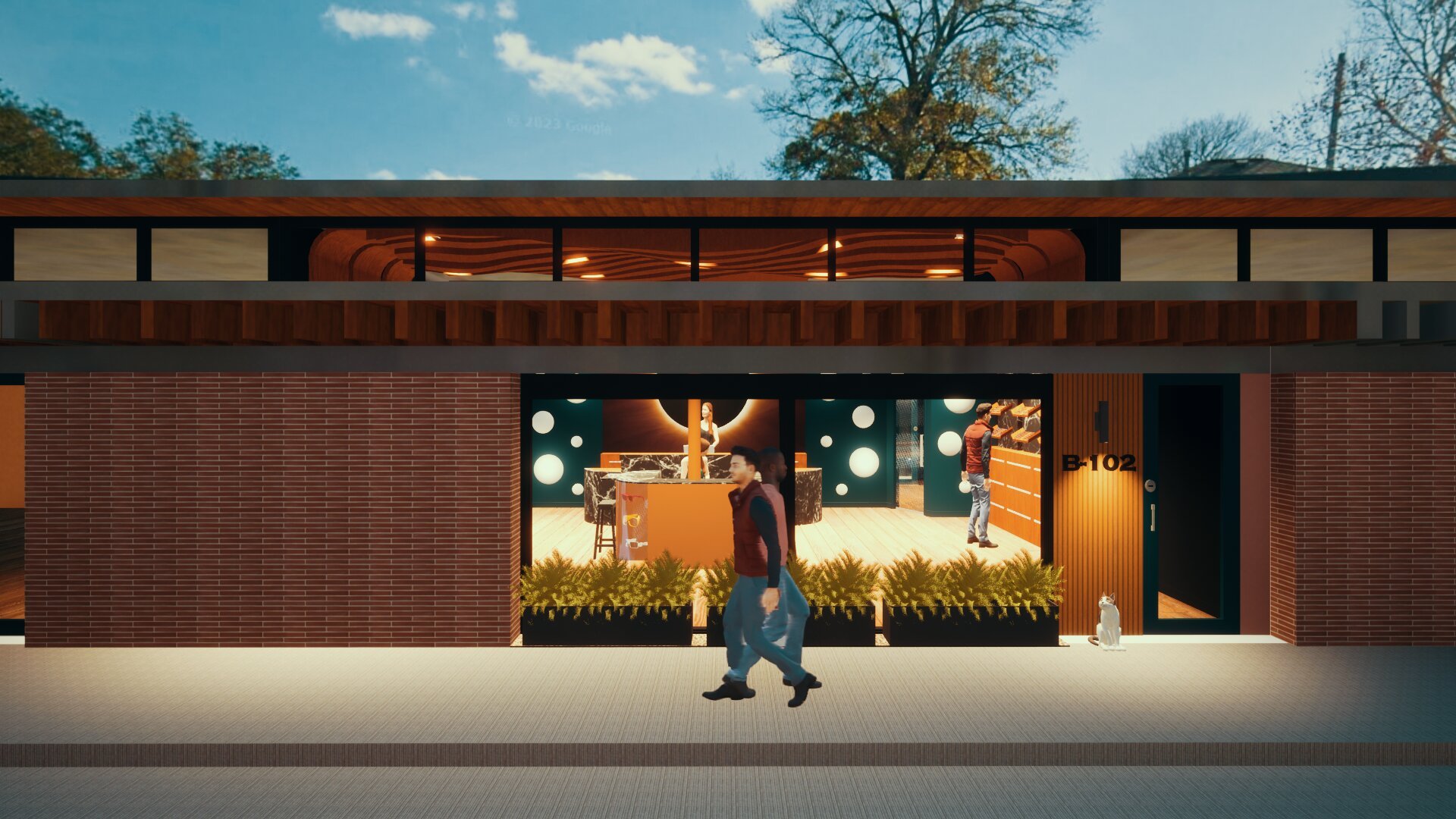

Retail Store Outside View (Sketchup)

GENDEYE Sunglasses business expanded into a brick-and-mortar store, adding the vision clinic and new technology mirror that shows what type of frames works better with customers face.

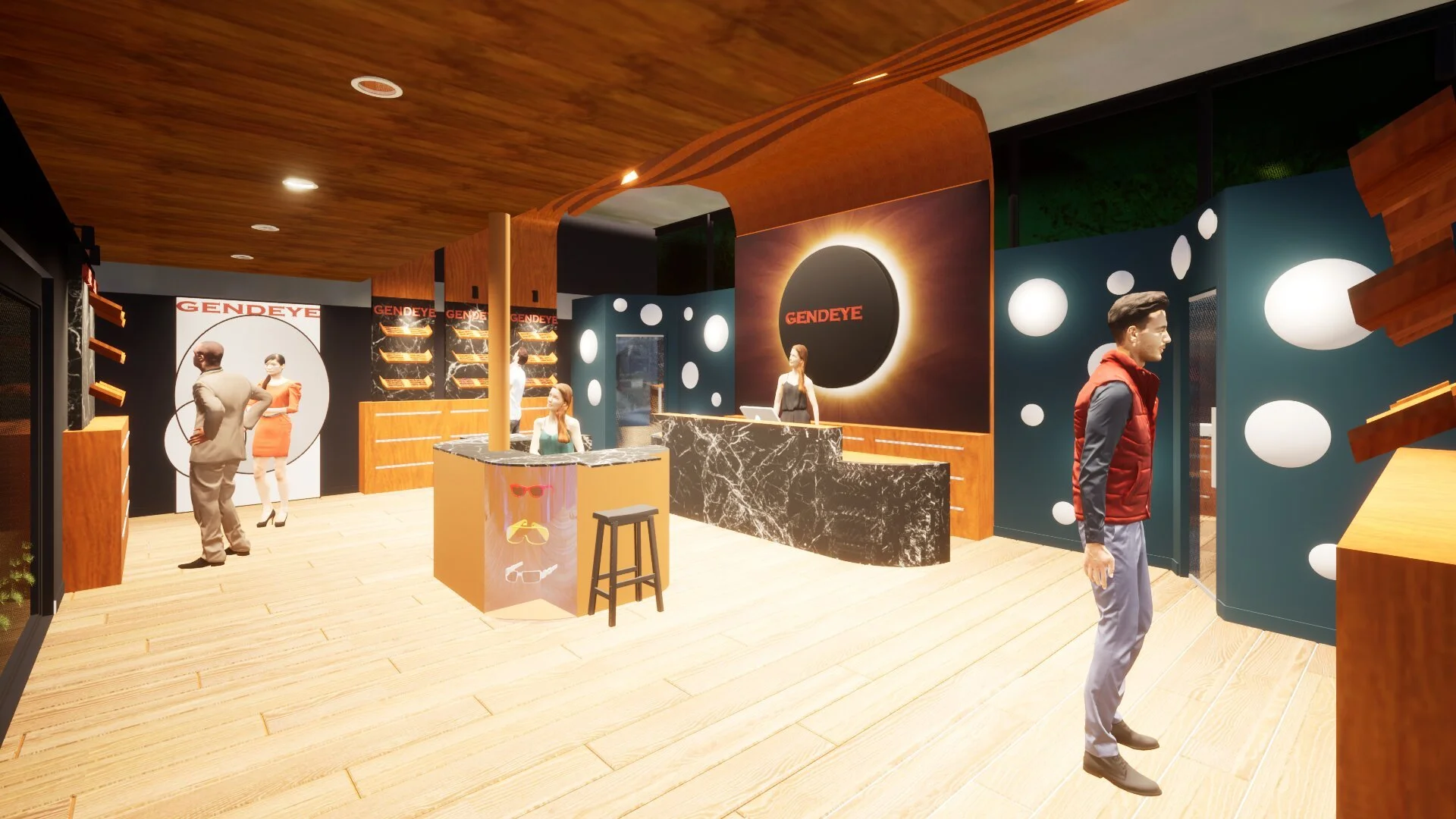

Retail Store Inside Rendering (Twin-Motion)

Open concept for retail store, with black marble and walnut finishes. Nice accent walnut Motis on the high ceiling.

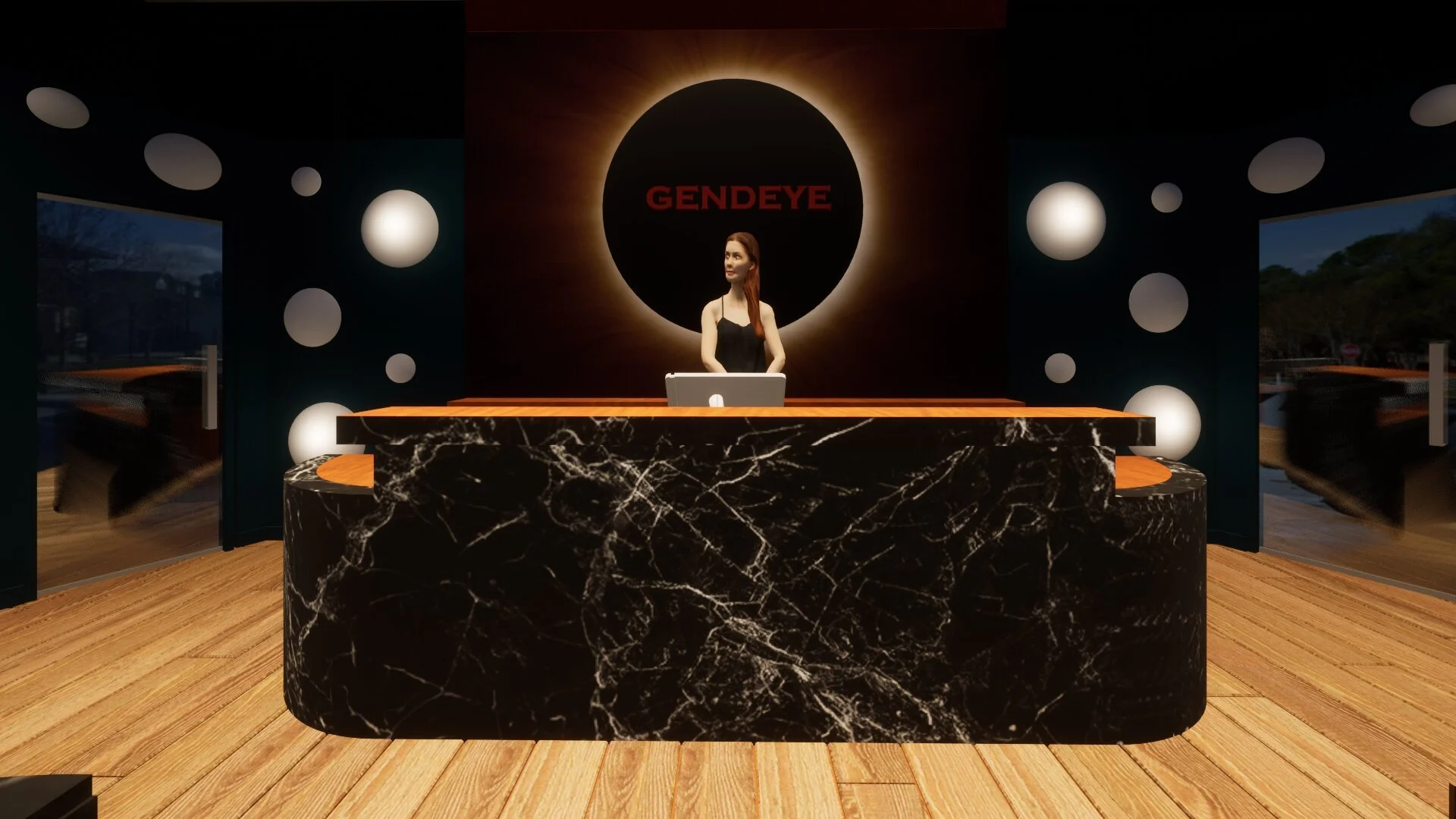

Retail Store Inside Wrap Station Rendering (Twin-Motion)

Better view of the front desk check-out register with main Gendeye logo on the back.

Retail Store Sales Floor Rendering (Twin-Motion)

Open concept for retail store, with black marble and walnut finishes. Nice accent walnut Motis on the high ceiling.
Retail Store Inside Rendering (Twin-Motion)

Open concept for retail store, with black marble and walnut finishes. Nice accent walnut Motis on the high ceiling.
Retail Store Inside Rendering (Twin-Motion)

Inside view of the smart mirror that shows customers what type of frames they fit better. .

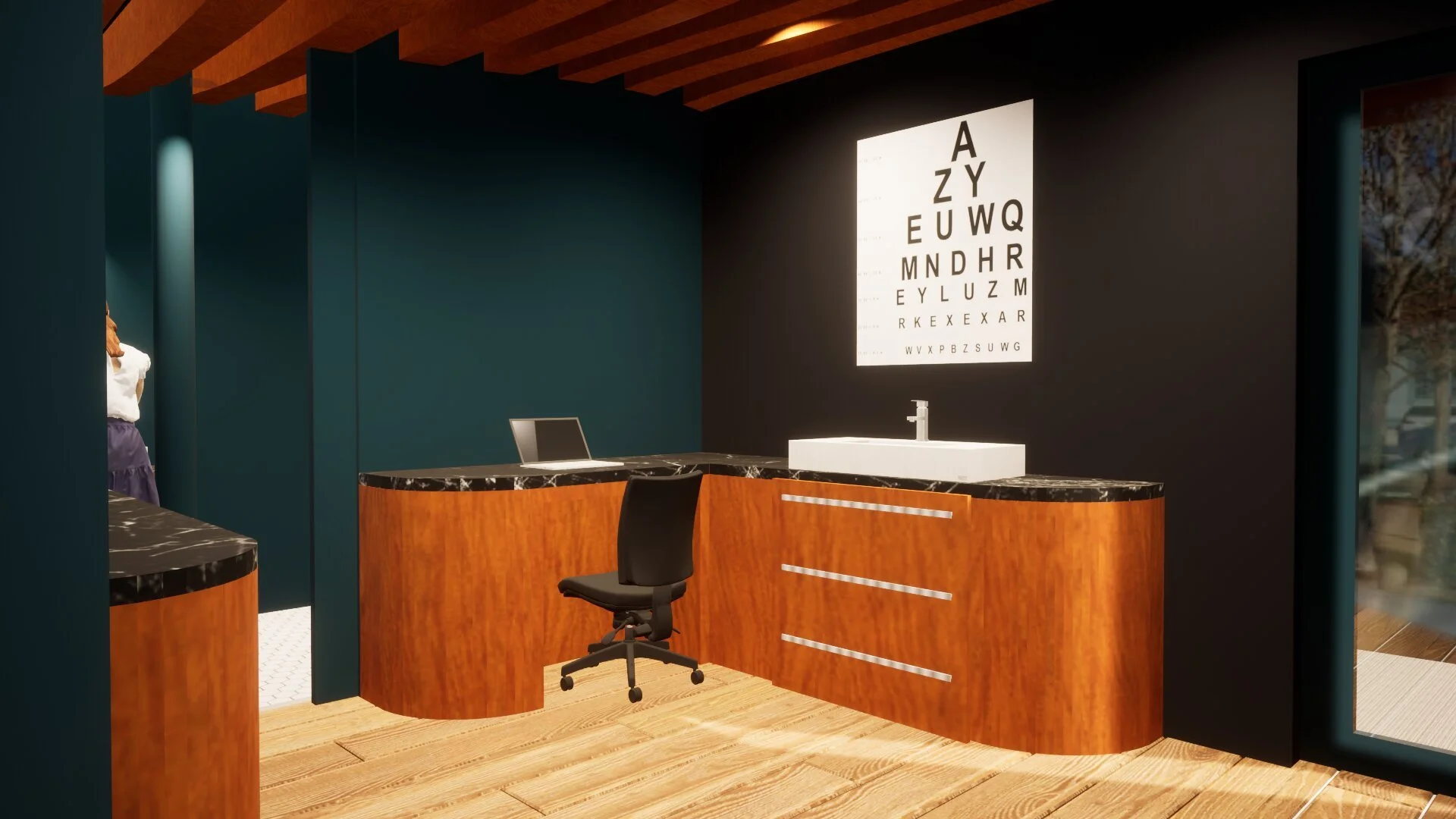

Eye Care Clinic INSIDE VIEW (TWIN-MOTION)

Inside view of the Eye care clinic. This is one of the upgrades from the Pop-up Shop to the brick-and-mortar retail store.
BACK OFFICE / EMPLOYEE BREAK ROOM / STORAGE VIEW

Storage area for product, employee break-room with bathroom and back office for inventories and buyers orders.
RETAIL STORE OUTSIDE VIEW (SKETCHUP)

GENDEYE Sunglasses business expanded into a brick-and-mortar store, adding the vision clinic and new technology mirror that shows what type of frames works better with customers face.

Interior Desig Phases

Program Requirements
Inspiration Board

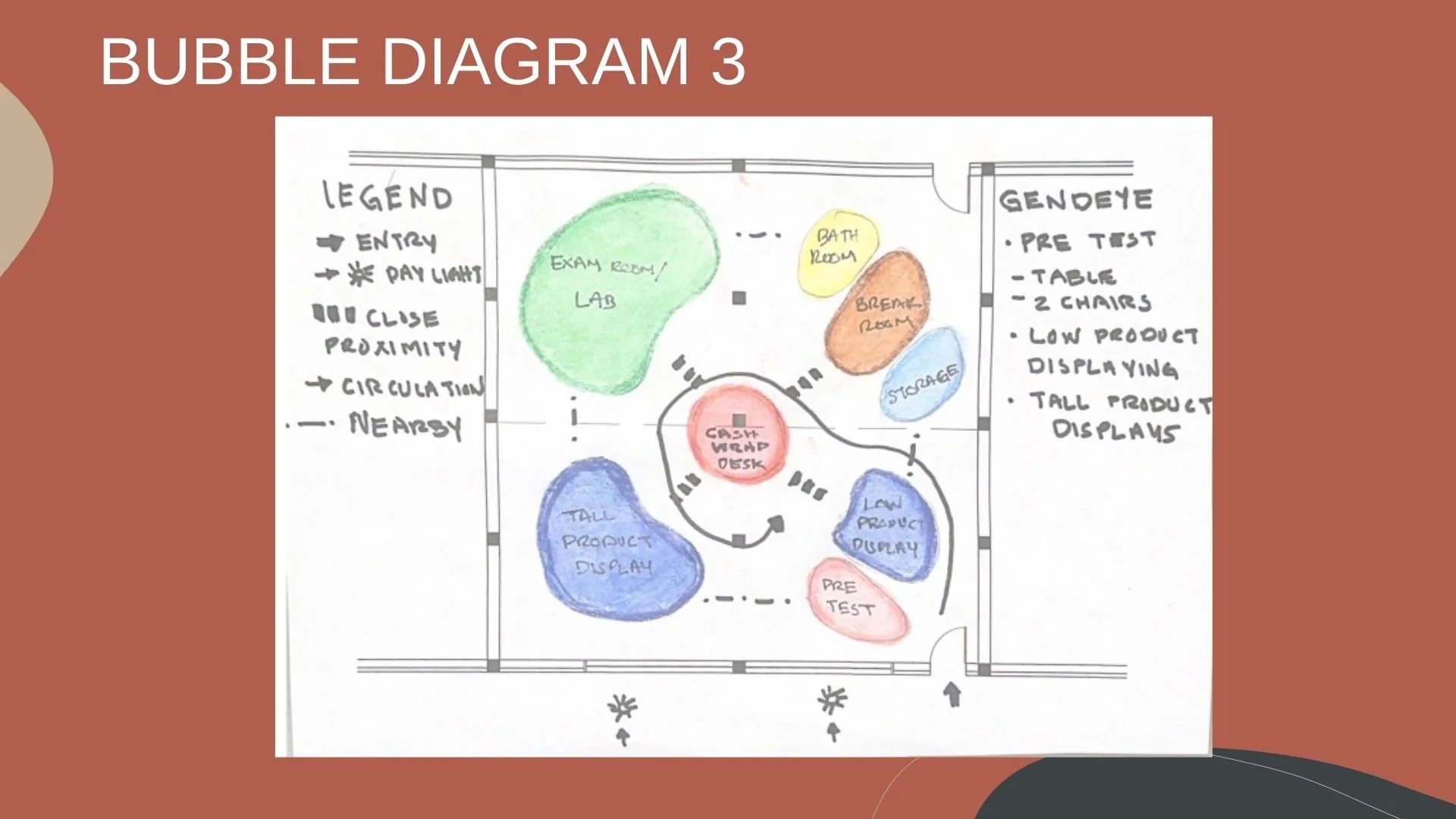

Bubble Diagram
Bubble Diagram
Finishes 1
Finishes 2
Finishes 3
Criteria Matrix

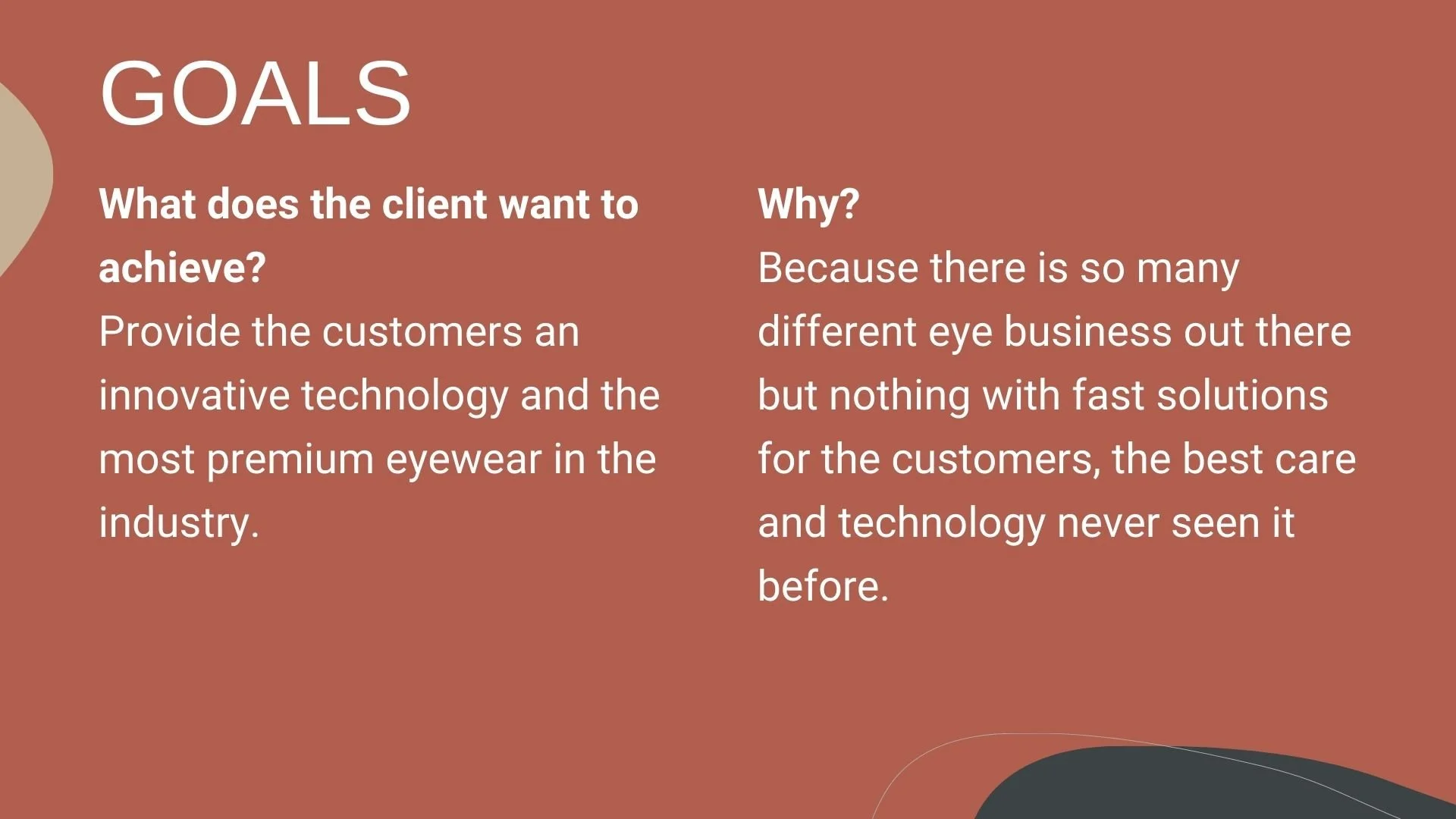

Goals
Facts
Concepts
Needs
Problems

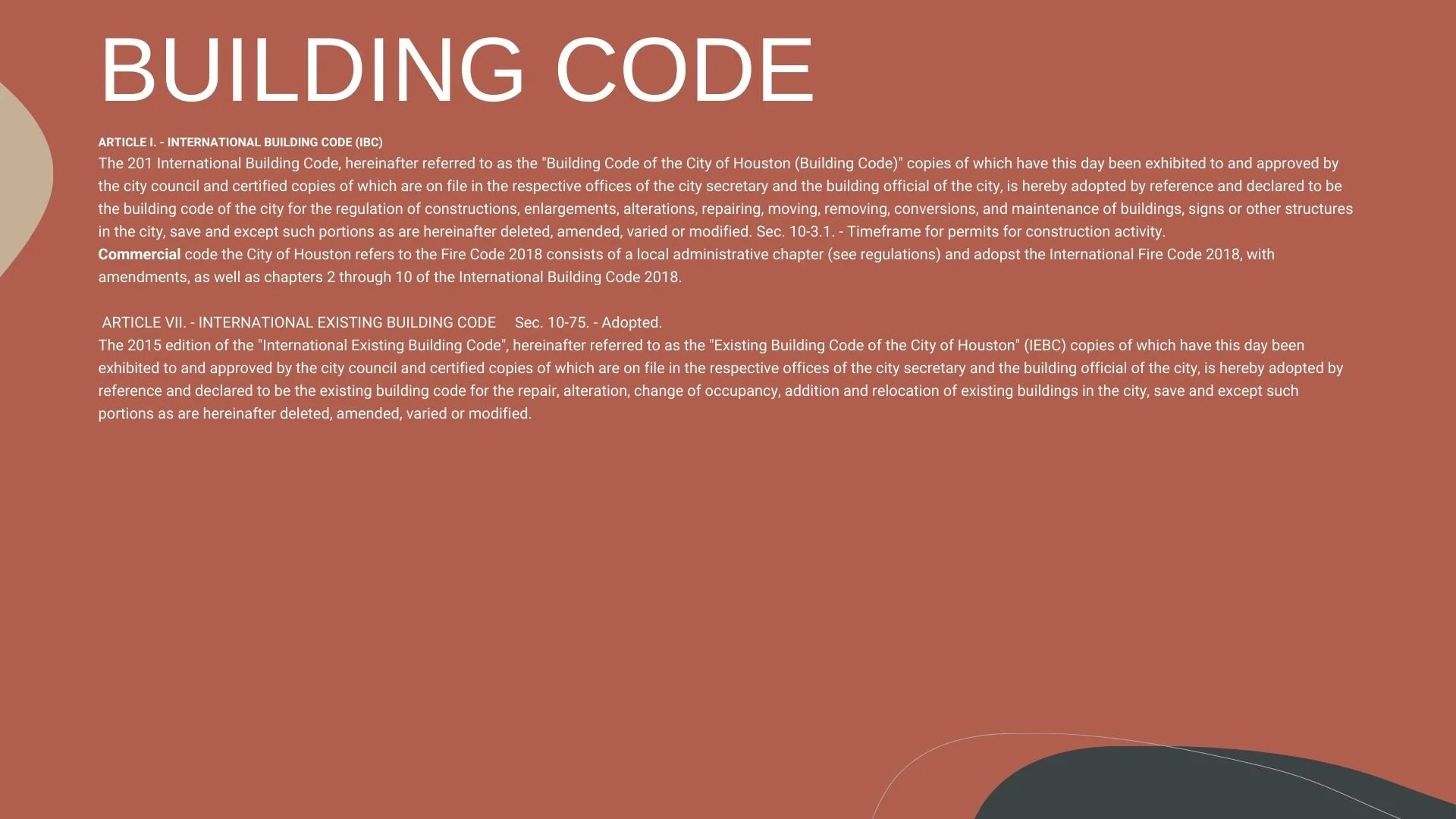

Building Code
Floor Plan

Autodesk AutoCAD

Cover Sheet

First page of a Cads document, contain directory of sheet, symbols, project and designer information and an actual location map.
Floor Plan

Refers to a detailed drawing or design that outlines the layout and arrangement of partitions within a space.

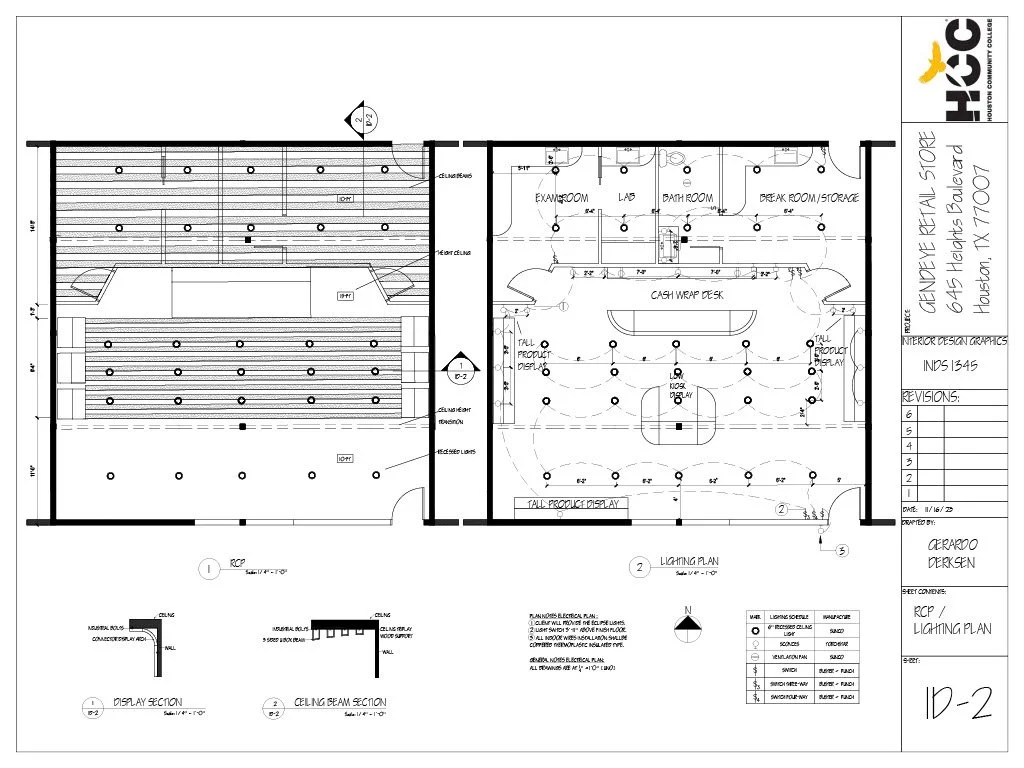

Rcp / Lighting Plan

Refers to all the details above ceiling, lighting, beams, etc.

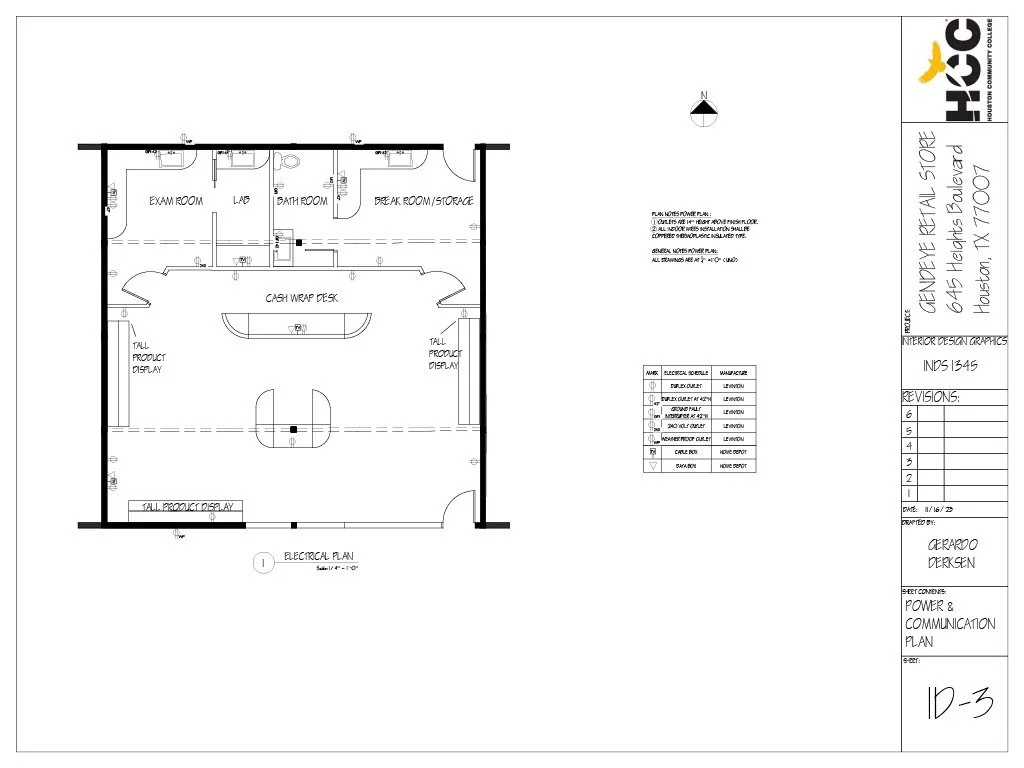

Power & Communication Plan

Refers to a detailed diagram or drawing that represents the electrical components, circuits, and connections within a building.
Furniture Plan

Refers to a detailed layout or design that specifies the arrangement of furniture within a space. It is a crucial step in interior design and architectural projects. Furniture plans help visualize how furniture pieces fit into a room or building.
Finish Floor Plan

Indicate floor types, colors, and/or the patterns associated with that floor. Finish schedules or specifications will list the floor material, but having a visual representation can help a builder easily understand alignments, relationships, and where floor types blend into each other.
Elevations

Refer to the visual representations of a building or object as seen from specific sides. These drawings provide a vertical view, and sections Refers to a cut view across the cabinets to show more details.
Elevations

Refer to the visual representations of a building or object as seen from specific sides. These drawings provide a vertical view, and sections Refers to a cut view across the cabinets to show more details.

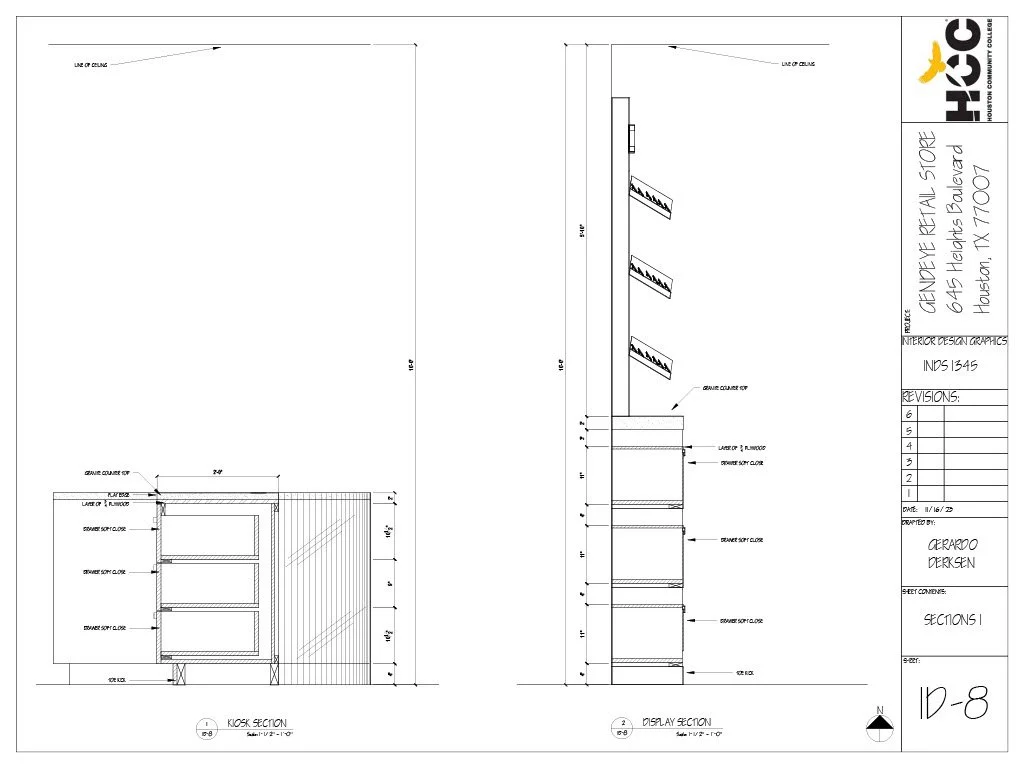

Sections 1

Refer to the visual representations of a building or object as seen from specific sides. These drawings provide a vertical view, and sections Refers to a cut view across the cabinets to show more details.

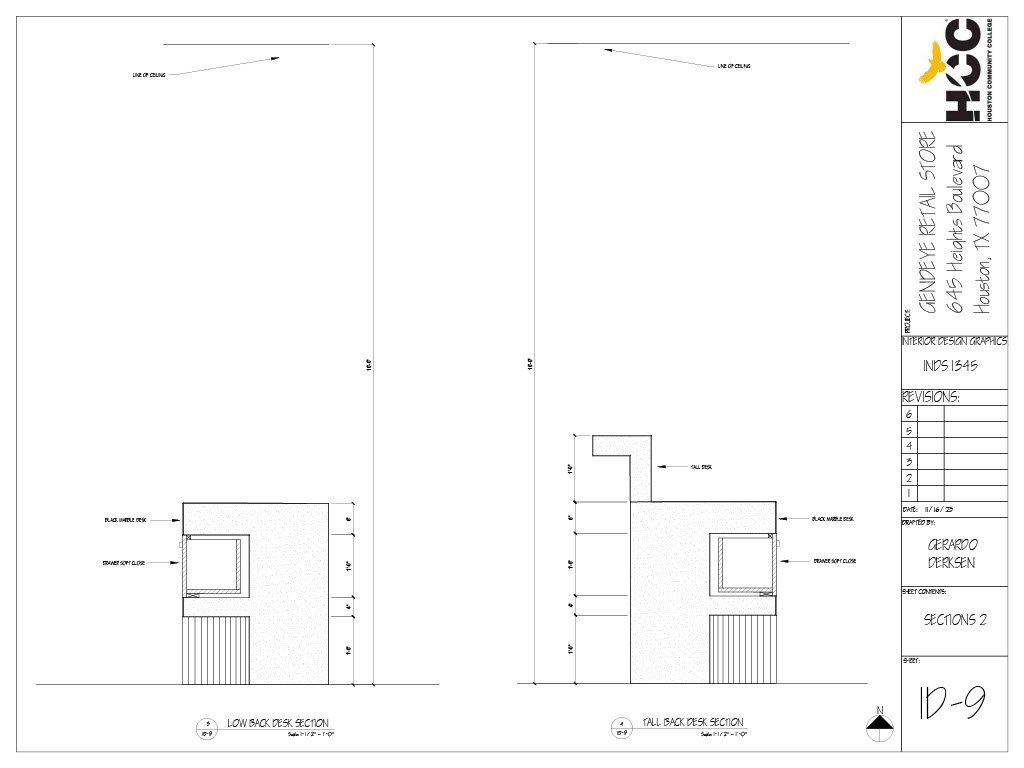

Sections 2

Refer to the visual representations of a building or object as seen from specific sides. These drawings provide a vertical view, and sections Refers to a cut view across the cabinets to show more details.
Sections 3

Refer to the visual representations of a building or object as seen from specific sides. These drawings provide a vertical view, and sections Refers to a cut view across the cabinets to show more details.
